Resolume Arena, Madmapp, M5.0 Artnet To SPI Pixel Controller 12 Port 12240 Pixels Control WS2811 WS2812 DMX512 For LED Strip Light
Original price was: $193.06.$186.56Current price is: $186.56.
- Features: Support M5.0 / Resolune/Madmapper
- Model Number: 12240 Pixels controller
- Oscillation frequency: rgb
- Connection Mode: RJ45 port
- Warranty: 2
- Certification: ROHS
- Voltage: 110-240V
- Material: Aluminium
- Wattage: 1.3w
- Power Source: AC
- Max. Load Power: 10w
- Remote Distance: 100m
- Applicable Lights: LED strip lights
- Controlled Method: By Master or Computer
- Item Type: RGB controller
- Service: Provide simple technical support
Resolune / M5.0 Artnet To SPI Pixel Controller 12Port 12240 Pixels Control WS2811 WS2812 DMX512 For Led Strip Light
Introduction:
This is a 12-port online or SD card offline controller. With 12 groups of output ports, it supports DMX512 and SPI-type lamps, such as TM1812, WS2811, UCS2903, UCS9812, SM17512, and other ICs widely used in the industry.
The Controller uses an FPGA as the core processor and realises high load, high frame rate, high grey scale, and high synchronisation control with the FPGA's super parallel data-computing capability.
The realisation of a single station carrying 12K pixel points is very conducive to the construction of the engineering site wiring.
The controller has an Ethernet interface, supports ART-NET, GC-NET standards. Users can connect to the controller via Ethernet and preview online. In ART-NET mode, support 72 DMX512 universes.
The controller has an external DMX512 trigger function, can access the control console and KTV intelligent lighting control box, is very suitable for bar, KTV room lighting control, accepts the command call program, adjusts speed, brightness, and special effects, supports up to 13 channels OF DMX512 instructions.
The controller supports the multi-function editing software “ShadowDraw”
Independently developed by our factory, Polar Colour technology provides software tools that allow users to simply record M5.0 effect files for offline playback.
It has been widely used in KTV, bars, office buildings, hotels, shop signs and other LED lighting projects.
Function Features:
- FPGA as the core processor, to achieve high load, high speed, high grey, and high synchronisation control.
- Offline SD card controller, plug and play.
- OLED display screen, display parameters and address code, quick button setting address code and parameters.
- Supports 12-port output, each port supports 1024 pixels, single port supports 12K pixels.
- Can support a variety of lighting driver ICs: DMX512, UCS series, TM series, LX series, GW series, TLS series, MY series and so on.
- The output interface is compatible with the RS-485 signal and the SPI (TTL) signal.
- Support RGBW four-colour control and a variety of special controls, RGBW can choose energy-saving mode and brightening mode.
- Up to 65536 grey level control, built-in user-defined gamma correction curve.
- Supports SD cards of various capacities, such as 128M-32GB, and supports a maximum of 64 scenario files.
- Can be triggered by an external DMX512 console for extended use.
- Support MIX、Grouping by external DMX512 console.
- Support M5.0 online Preview, can record ARTNET scene files.
- Support LEDview online Preview, which can generate an SD scene file.
Product Parameter:
- Working Voltage: AC 90-240V
- Power Consumption: 3W
- Input trigger interface: RJ45（DMX512）
- Ethernet interface: RJ45（10M/100M）
- Output port: 12 ports
- Control Qty/Port: 1024 pixels
- Output Signal: DMX512/SPI(TTL)
- Working Temperature: -20℃～65℃
- Dimension: L250×W175×H35 mm
- Weight (G.W): 1.3 Kg
Application diagram:

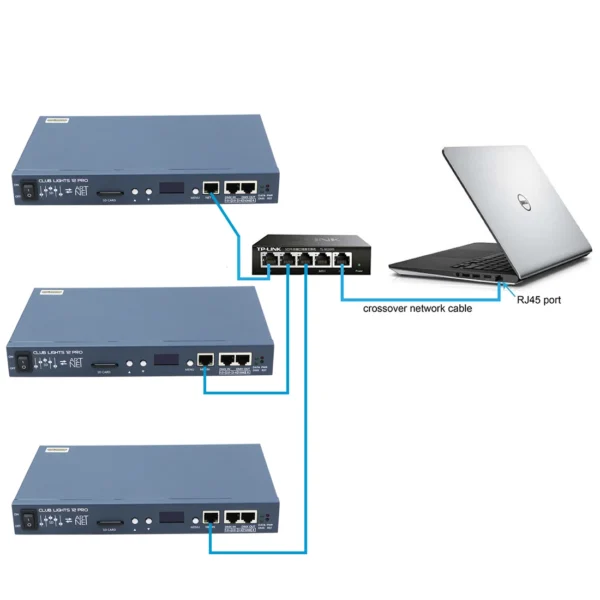

Application 1: M5.0 directly connects the Controller online ARTNET preview and debugging
Standard Ethernet cable CAT5E- 568B. 100M Ethernet
The CONTROLLER IP address is the default 192.168.1.11
Output 12 ports, 6 universes/Port, one universe is 170 pixels.
Connect M5.0, search the device can be used.
After connecting the M5.0 debugging preview, we can use the recording tool to record the ARTNET data package and generate an offline copy card file.
Application 2: Controller connects to DMX512 console
Button Instruction:
