HD2020 LED Software Download and Install

Huidu Technology Co., Ltd.‘s HD2020 LED software represents a new round of significant changes made in 2020. To improve customers' choices, some duplicated controllers are incorporated, the control range is updated more freely, and the price is more reasonable, which is adequate to deal with the present more extensive bigger, longer, and more different displays.

HD2020 LED software's overall user interface maintains the style of simple operation, powerful functions, ease of learning and use, and supports graphics (JGP, BMP, GIF, text, etc.), text, animated characters, Excel, time, timing, counting, lunar calendar, temperature and humidity, prayer, and weather. It can also support serial (including 232 and 485), network ports, Wi-Fi, U-Disc, and other controllers and can be used for different purposes.

Installing HD2020 LED Software

HD2020 LED software installation is very easy; the operation is as follows:

Find the file HD2020 V1.3.1.3.exe (or download it from our website: lededitpro.com) on your PC, and double-click HD2020 V1.3.1.3.exe. The software installation wizard will enter, as shown below.

Installing HD2020 LED Software

Follow the on-screen prompts (Next) to complete the installation.

After the installation of HD2020 LED software is completed successfully, the “HD2020” program group will appear in [Start]/[Programs]. Click HD2020 to run “HD2020“. You can also click the desktop HD2020 shortcut to open the software.

Open the main interface of the “HD2020 LED software” software as shown below:

The toolbar can be divided into two columns or displayed as one column. The information window can prompt whether the current command was sent successfully or display the current online device.

HD2020 LED Software main interface

1- Title Bar: used to display the software name.

2- Menu Bar: Include File, Settings, Language, Help, and More.

2.1- File Menu: Contains new display, new cross-screen, open, save, save as, exit, and logout options, as shown in the figure:

File Menu of HD2020 LED Software
  • New display: It is used to create a new display. There are no restrictions on the HD2020 manageable screen.
  • New cross screen: used to create a new cross screen.
  • Open: used to open the saved display file.
  • Save as: used to save the current display file with a custom path.
  • Exit: Close HD2020 software.
  • Cancel: Used to cancel the current account.

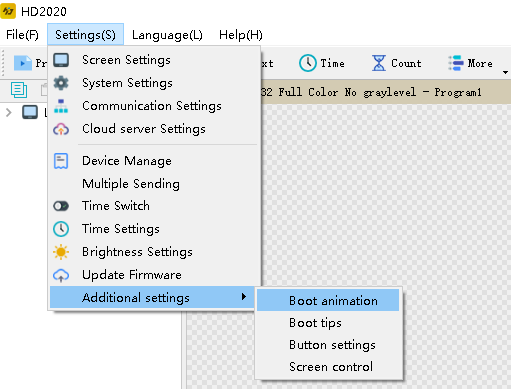

2.2- Setting menu: Including screen parameter settings, system settings, communication settings, cloud server settings, device management, cluster sending, timing switch on and off, time settings, brightness settings, firmware updates, and more settings (boot screen, boot prompt, button settings, screen control), as shown below:

Setting menu of HD2020 LED Software

Screen setting: used to bind the device and set the basic parameters of the display, as shown in the figure.

Screen setting of HD2020 LED Software

In the first step, if the control card has been displayed normally, you only need to change the screen widescreen height, color, and gray level. If the screen does not display normally, you need to set the hardware.

The second step is hardware settings. For regular screens, please select common smart settings. For non-conventional screens, please perform smart settings (smart settings must be performed when a device is found, and U disk cards cannot be used for smart settings).

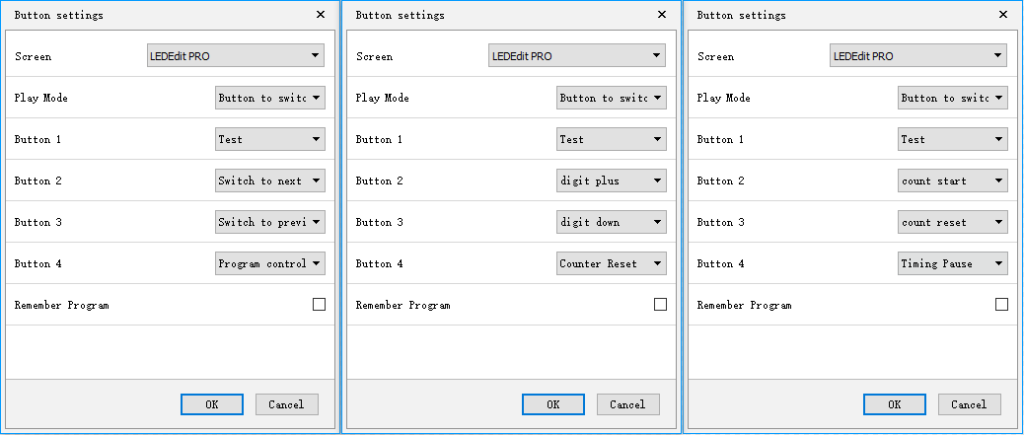

The button settings are in the SettingsMore SettingsButton Settings interface, which is used to adjust the functions of the four keys, as shown in the figure below:

Button Settings interface

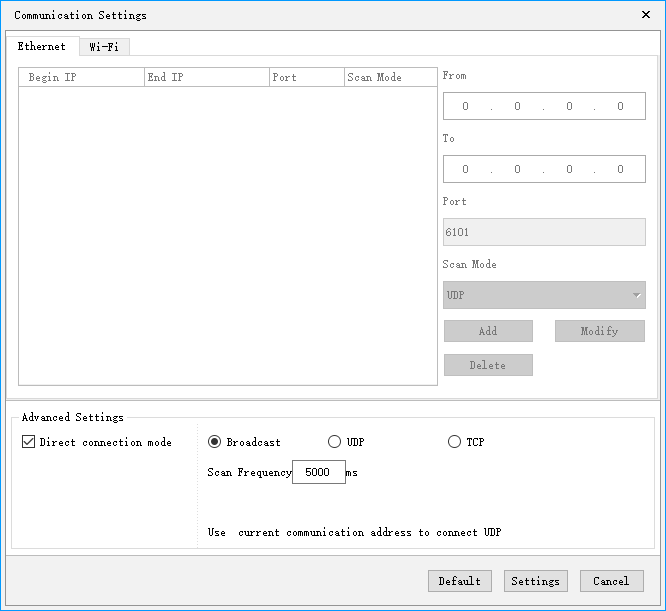

Communication settings: used to modify the communication settings when multiple cards are connected.

1. The default Ethernet is the single-machine direct connection mode; that is, when there is only one card connected to the computer, there is no need to change any settings; as long as the network cable is connected properly, the device can be found.

Communication settings of HD2020 LED Software

2. When you do not check the single-machine direct connection mode, it applies to the control card and the main control computer are not in direct connection mode and the control card and the main control computer are not in the same network segment, you need to add the IP address of the network segment where the control card is located to the software. The operation is shown in the figure. After adding, you can find the card on 192.168.3. * Network segment.

Communication settings

3. The Wi-Fi card interface is used to connect the Wi-Fi signal to the control card. Enter the default connection password 88888888 as shown below:

Communication settings

Read More: How to Reset Huidu Controller Password in 10 Steps

System Settings: Used to set system parameters (not recommended to change). As the picture shows:

System Settings

Cloud server settings: Used to bind the network port card to the cloud platform, enter the registered user name and server address, as shown in the following figure:

Cloud server settings

Device manage: used to modify the names of all devices that can be found, modify the IP address of the network port card, and also manage the current device's clear display data, time settings, brightness settings, timer switch, display test, open screen, restart display, and Wi-Fi settings.

Device manage

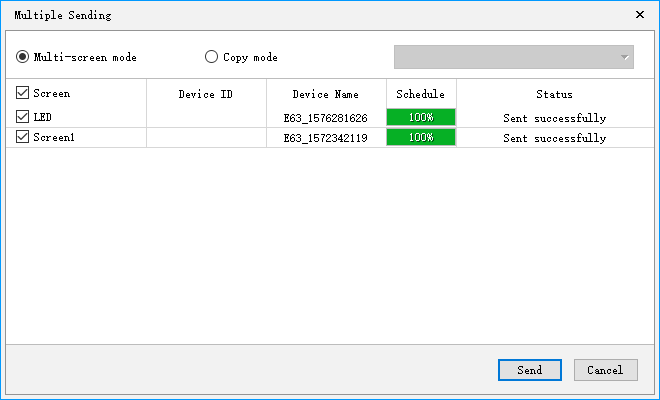

Cluster sending: used to send multiple display files; there are two types of multi-screen mode and copy mode.

  1. Multi-screen mode: It is required that the device name be selected in the screen parameter setting, and one device is bound to each screen.
  2. Copy mode: Select the display to send and send the display to all found devices.
Cluster sending
  • Time setting: Set the time on the control card, which can be the current time of the system or it can be the elapsed or future time.
  • Brightness setting: divided into manual, automatic adjustment (requires an additional sensor), and three types of adjustment by time.
  • Timer power on / off: Set the startup time and shutdown time of the control card.
  • Startup screen: Enable the startup screen, click OK after loading the file, or export the file to a USB flash drive.
  • Firmware update: used to upgrade the control card.
  • Power-on prompt: Used to remove the power-on prompt of the control card, you can set it not to display. show all, firmware versions, control cards, and memory sizes.
  • Screen control: used to control the on / off / play / pause of the display.

2.3- Language menu: Includes Simplified Chinese, Traditional Chinese, English, Arabic, Bulgarian, French, German, Indonesian, Hindi, Iranian, Italian, Japanese, Korean, Mongolian, Polish, Portuguese, Romanian, Russian, Serbian, Spanish, and 23 languages: Chinese, Thai, Turkish, and Vietnamese, for switching the user interface without language.

2.4- Help menu: Toolbar for viewing the version number of the HD2020 software.

3- Toolbar: Contains programs, text, graphics, time, timing, counting, animated characters, temperature, and humidity, Excel, Chinese calendar, prayer, weather, time, U disk export, send, search for machines, and other tools, as shown in the figure:

  • Program: used to create a new program (the program is the next-level directory of the display screen); Global program: only for cross screen.
  • Graphic: for creating a new graphic area, you can add pictures, GIF, and text.
  • Text: The text can support 90 °, 180 °, and 270 ° rotation, and supports regional background.
  • Animated characters: used to create new animated character areas, hollow characters, and font strokes can be built, and classic backgrounds and image backgrounds are supported.
  • Excel: Add Excel area, support horizontal screenshot and vertical screenshot, and support area background.
  • Time: Support digital clock and dial clocks; add AM and PM displays to the dial; support regional background.
  • Timing: support four modes: countdown, countdown, button countdown, button countdown, cycle counting by button, and region background.
  • Counting: can count from small to large, count from large to small, and support regional background.
  • Temperature and humidity: temperature, temperature and humidity, and PM2.5 need different sensors for displaying the current ambient temperature, temperature, and humidity, or PM2.5 (need to add a temperature sensor, temperature, and humidity sensor, or PM2.5 sensor).
  • Lunar calendar: can display the day of the dry, the lunar calendar, solar terms, festivals, and support regional background.
  • Prayer: Displays the prayer time.
  • Weather: display weather (temperature, wind speed, wind direction, PM2.5, weather).
  • Time calibration: correct the time of the control card (adjust the clock of the control card to synchronize with the computer).
  • U disk export: for U disk card, current display file and time are saved to U disk (U disk update).
  • Send: used to send the current display file.
  • Seeking machine: used to find the control card.
